CNC MACHINING CENTRE

(1) WorkTable Size: 1450*600mm
(2) Made in TAIWAN
(3) Maxi.Loading: 1000kgs
(4) X,Y,Z, Stoke: 1250,600,635mm
(5) Moving Speed:
15000,15000,12000mm/min
(6) Cutting Speed: 4000mm/min
(7) Slant cross section beam with 3 box ways design for Y axis
(8) Best Center-line layout of Spindle system


High Speed CNC Engraving & Milling Machine

(1) Travels: 620*750*300MM
(2) Maxi.Moving Feed: 10m/min
(3) Maxi.Cutting Feed: 10m/min
(4) Positional Precision: +/- 0.01mm
(5) Repeat Position Precision: 0.005mm
(6) Spain FAGOR high speed CNC system
(7) TaiWan high precision electricity spindle
(8) 1 Set of this machine for the present


Precision Wire-Cutting Machine

(1) 3 Sets of this kind of machine, made in China
(2) Working Table Size: 600*400MM
(3) X, Y, Z Stroke: 380*250*250MM
(4) Positional Precision: +/-0.01mm
(5) Maxi Weight of Electrode: 70KGS
(6) Maxi Size of working piece:800*500*320mm
(7) Maxi Weight of working piece: 1000KG



ACTSPARK Precision EDM Machine

(1) AGIECHARMILLES made in China
(2) X, Y, Z Stroke: 320*250*250 MM
(3) Maxi Weight of working piece: 600kgs
(4) Maxi Weight of Electrode: 80Kgs
(5) Axis Resolution: X,Y=1um, Z=0.5um
(6) Working Table Size: 500*320mm
(7) Maxi Working Piece: 790*480*260mm
(8) 1 Set in use for the present

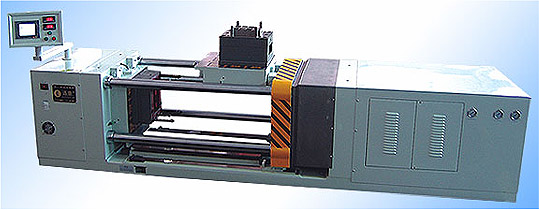

WS-120 MOULD CLAMPING MACHINE

Max. Pressure  120T
Max. Capacity Size:      800*800MM
Fast Backward/Tool Backward: 60/22 (mm/sec)
Electric Permanent Magnetic Suck force: 28T
Turn-Over Capability :  3T
Max. Stroke:   1250MM
Forward/Tool Feed Speed: 45/16 (mm/sec)
Permanent Magnetic Suck Force: 7T
Enforced Magnetic Force: 36T
Angle:  0-90 degrees
